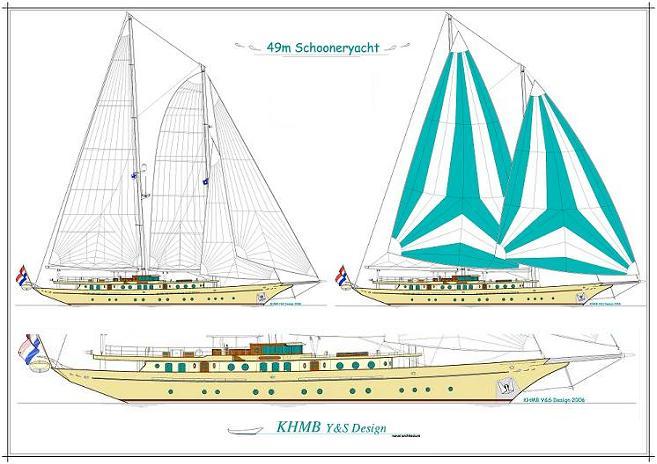

This concept-design is the result of a search for the combination of a sailing yacht for commercial charter for 12 guests and 8 crew with beautiful aesthetics. In other words to merge classic charm with enough living space to stay in comfort. As you can see the outlines refer to the good old classic ladies of the beginning of the twentieth century. At the same time the freeboard is increased and a classic roundhouse and a lowered bridge are added to accommodate the present standards of comfort and techniques. The ship can meet the latest criteria of MCA , GT (gross tonnage) less than 500.
Main Particulars
| Overall length |
57,10 m |
| Hull length |
49,50 m |
| Waterline length |
36,43 m |
| Beam moulded |
9,50 m |
| Draft |
4,55 m |
| Airdraft |
55,70 m |
| Displacement |
300 ton |
| Standard sailarea |
1225 m2 |
| |
|
| Nr. of guests |
12 |
| Nr. of crew incl. master |
8 |
|
