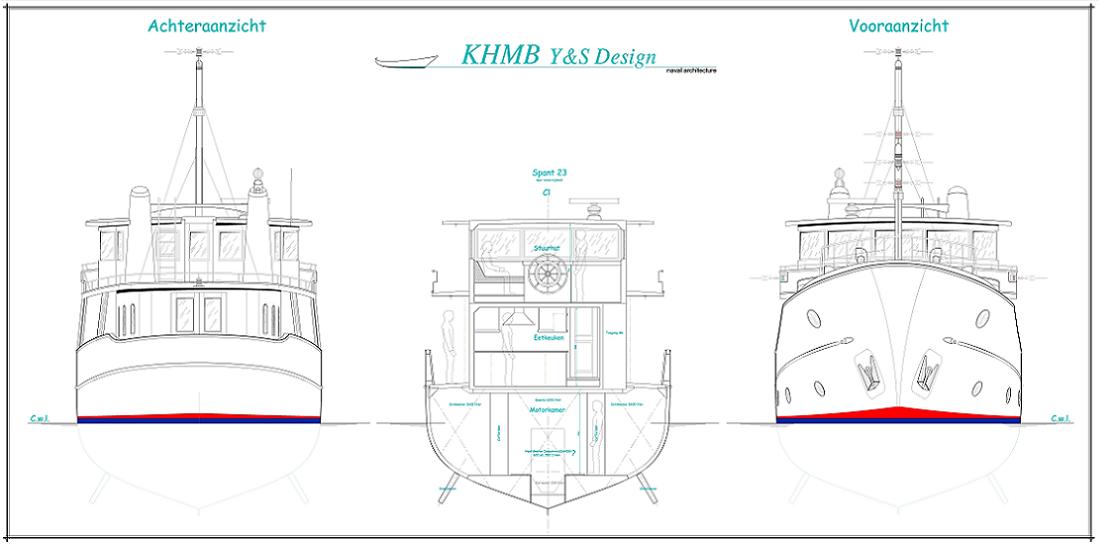

This design represents a plan for a conversion of a former fishing cutter into a classic yacht for leisure. The old steel roundhouses will be replaced by an aluminium one to reduce weight and increase stability figures.

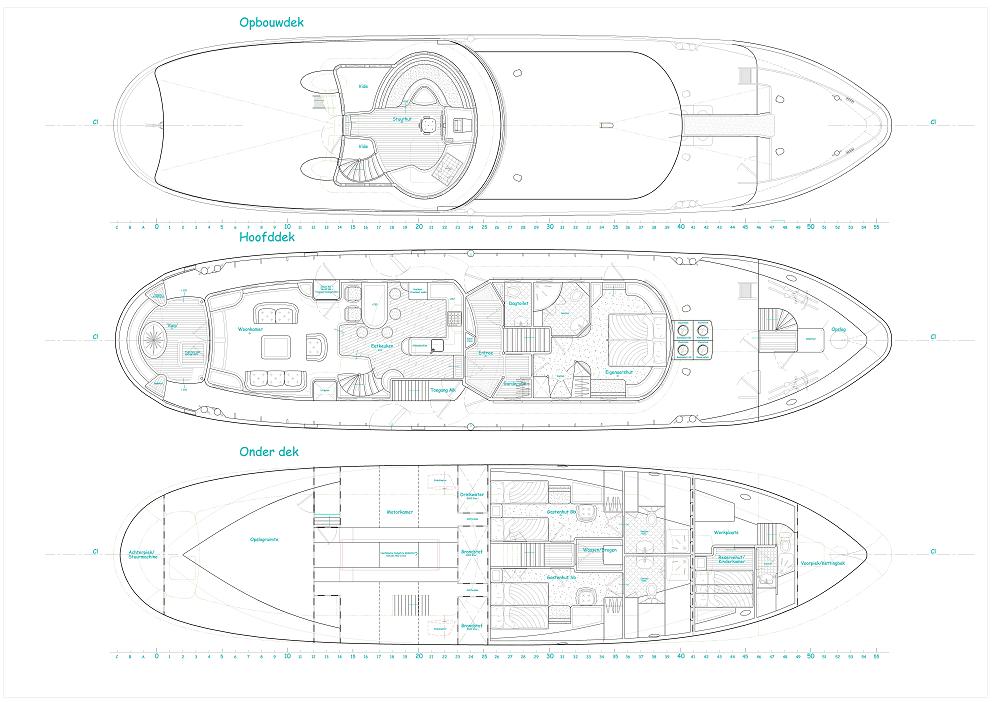

This new roundhouse will give room to a living area incl. an large open galley as also the owner state room which is situated is the forward part. Under deck a large engine room is situated and in front of that a couple of Guest cabins,  In the foreship a spare cabin. The elliptical wheelhouse is  'coupled' to the living area due a vide, to ensure a real 'integrated'  interior. Overall the ship will keep her original sturdy appearance completed with yachty accents.

Main Particulars

Overall length	26,74 m
Waterline length	23,42 m
Moulded breadth	6,20 m
Overall beam	6,30 m
Draft	2,62 m
Airdraft	6,00 m
Displacement	135 ton
Fuel	9000 ltr
Fresh water	7200 ltr
Holding	1130 ltr
